ZED Ziegler Electronic Devices GmbH
UV-Systems: controls, ballasts, sensors, monitors
ZED offers a comprehensive selection of high quality ballasts that are perfectly matched to any UV lamp, regardless of manufacturer. Our products are the ideal choice for those who value efficiency and reliability. Our range includes a wide spectrum of ballasts for up to 4 lamps per unit. In addition, with the ZCON control system, we offer turnkey solutions for controlling ballasts and lamps for UV systems. UV sensors, UV monitors and Reference Radiometers complete our product range.
STAND NUMBER:
10.709
CATEGORIES:
Trading regions
Africa:
Algeria, Angola, Benin, Botswana, Bouvet Island, Burkina Faso, Burundi, Cameroon, Cape Verde, Central African Rep, Chad, Comoros
Americas:
American Samoa, Anguilla, Antigua & Barbuda, Argentina, Aruba, Bahamas, Barbados, Belize, Bermuda, Bolivia, Brazil, Canada
EVENT:
Aquatech Amsterdam 2025
ADDRESS:
In den Folgen 7 98693 Ilmenau Germany
WEBSITE:
Products
View all products
ZCON next gen
New generation of ZCON control unit for out-of-the-box UV Monitoring and Regulation - intuitive operation, modular design and maximum flexibility
Preconfigured UV Control: Ready to use – optimized for ZED ballasts and ZED UV sensors. Modular Design: scalable IO boards and optional Wiper Control Precise UV Monitoring and Regulation: Controls UV intensity based on calculated dose, tailored to customer-specific models and system designs. Intuitive Operation via 12-inch touch display Simplified Installation: CAT5 patch cables for system wiring + scalable IO boards significantly reduce wiring effortZED PPT – Perfect Performance Tool

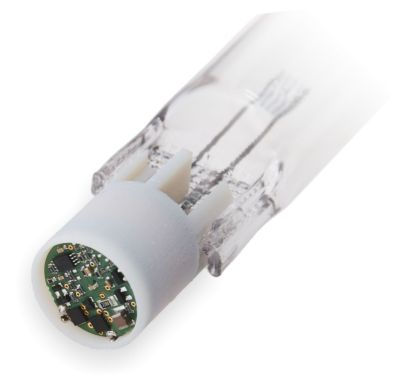

UV-C lamp optimization
- lamp add-on for optimizing the UV-C output of amalgam lamps in combination with ZED ballasts - UV-C lamp efficiency increase - stable and predictable UV-C output in the entire temperature and dimming range - no change in lamp/reactor geometry - no additional wiring necessaryZED SmartMeter

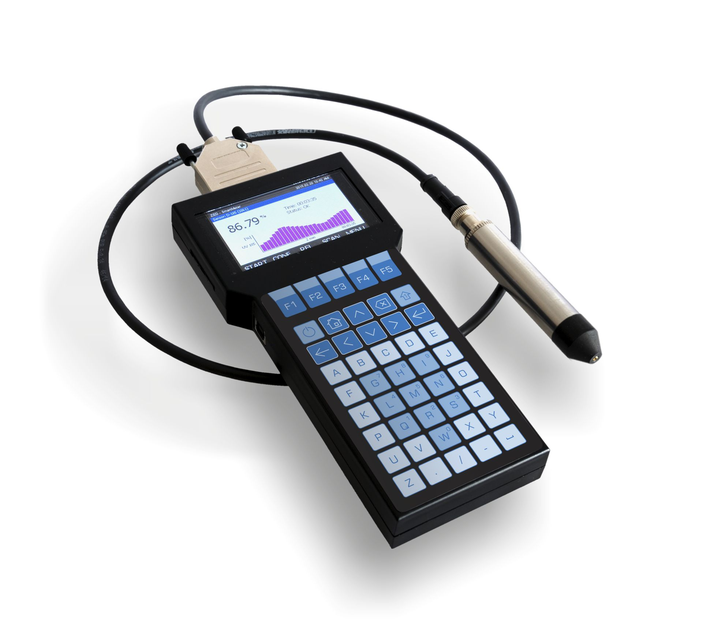

universal handheld unit for UV/C measurement
- UV-C intensity reference measurement with ÖNORM/DVGW compliant sensors - VUV intensity measurement with 185nm sensors - readjustment of digital ZED UV-C sensors - data logging - ModBus address settingZED Digital UVC Reference sensor

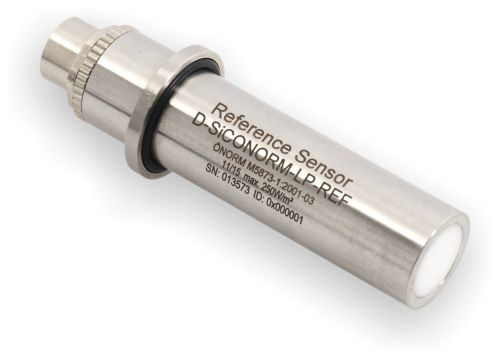

ÖNORM/DVGW compliant Digital UVC Reference sensor
UVC Reference Sensor D-SiCONORM-LP-REF to be used - for calibration checks of DVGW/ÖNORM conform facility sensors - as measurement device - as reference for in-field recalibration of digital ZED sensors > digital signal processing, signal conversion to absolute UVC intensity values in W/m² > measurement ranges: 0.01..250W/m²/0.1..500W/m² > internal operation hour counter The digital ZED reference sensor itself is the complete reference device -it is not bound to a certain radiometer deviceD-SiC, D-SiC-I, D-SiC-U

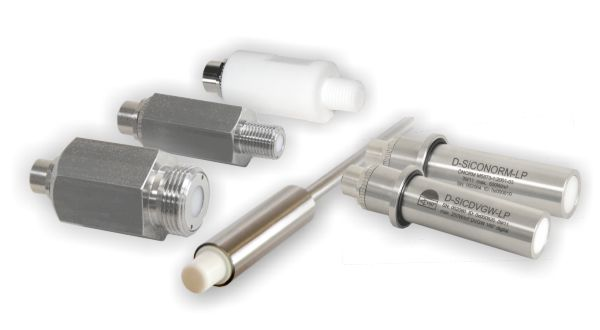

digital UV-C sensors with digital or analog signal
Sensors for use in UV-C monitoring systems. The digital signal processing allows the automatic selection of the optimum internal measurement range. Low pressure types are adjusted for the complete range of 2...500W/m², medium pressure types: range 20...3000W/m². Digital UV sensors with RS485 interface enable fail safe signal transmission using ModBus or ZCON protocol. Digital Sensors with analog output incorporate signal converter to classical analog interfaces (4-20mA, 0-2V, 0-10V).ZCONmini

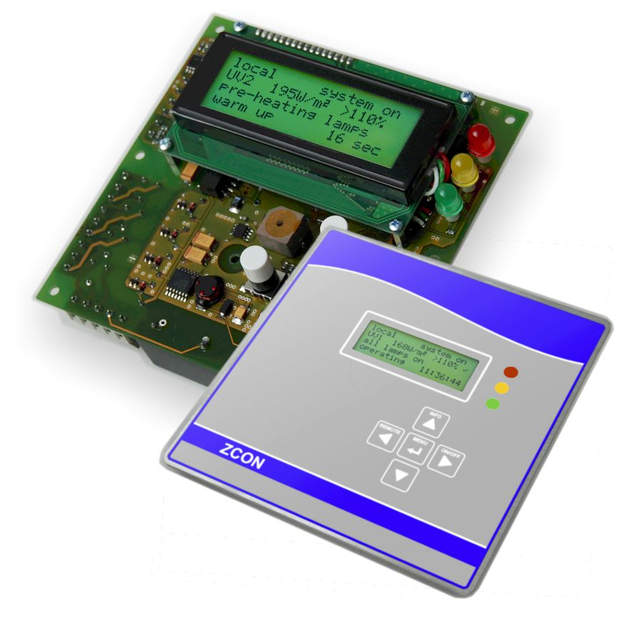

master control unit for PHplus ballasts
- lamp operation control and monitoring - operation hour counter - UV monitoring with up to 4 digital UV sensors - status indication by LCD, LED and relays - remote switching - ready to use and customized solutionsPHplus-R ballasts
for 4x 320W / 2x 260W / 1200W UV-C lamps
- optimized lamp operation - long lamp-ballast distances up to 30 m - single, dual, triple and quad lamp types - housing types and rack mountable types - adjustable operation parameters - dimmable (optional via 4-20mA, 0-10V, Ethernet) - providing local operation and digital remote control - lamp operation control via RS485 using ModBus or ZCON - status indication with LED, relay or via RS485 - enhanced protection: power range control, undervoltage/overtemperature protectionPHplus ballasts

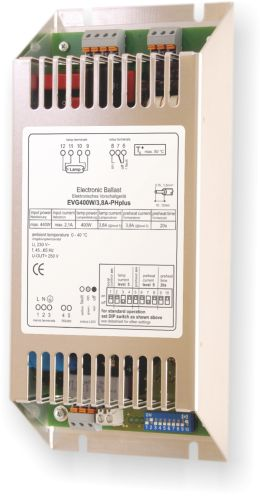

controllable and adjustable electronic ballasts
- preheat start ballasts for optimal lamp operation - long lamp-ballast distances - up to 30 m - single, dual, triple and quad lamp types - housing types and rack mountable types - adjustable operation parameters - dimmable - providing local operation and digital remote control - lamp operation control via RS485 using ModBus or ZCON - status indication with LED, relay or via RS485 - enhanced protection: power range control, undervoltage protection, overtemperature protection -PH-S ballasts

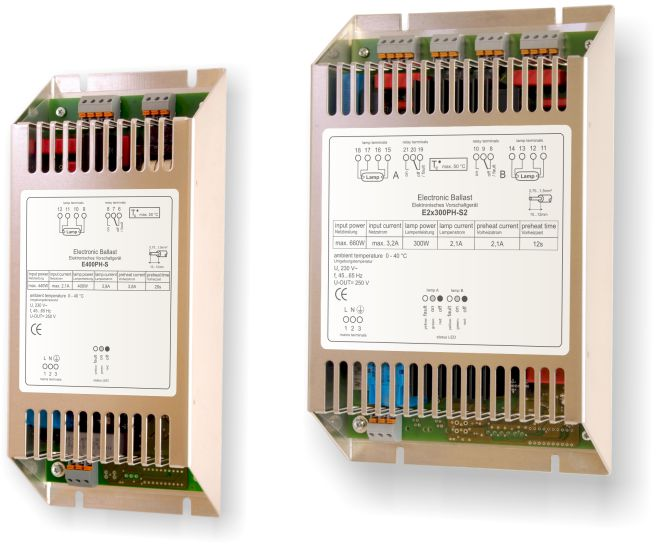

electronic ballasts with enhanced operation

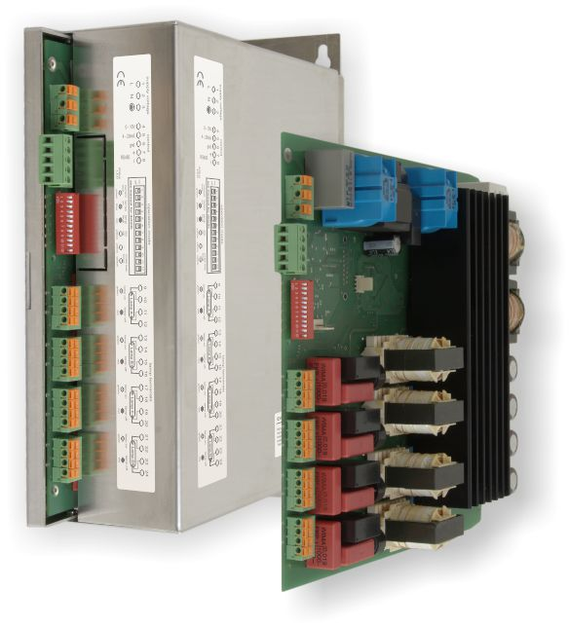

- preheat start ballasts for optimal lamp operation - long lamp-ballast distances up to 30 m - optimized to the specified lamp - status indication with LED and relay - overtemperature protectionNew Line of Ballasts for Medium Pressure Lamps
The new line of ballasts for medium pressure lamps
Electronic ballasts for medium pressure lamps, power ranges: - 200...500W, - 500...1500W - 1500...2500W > ignitor: internal for short cable lengths / external for long cable lengths > adjustable operation parameters > lamp operation control via RS485 using ModBus or ZCON protocol - power range control - undervoltage protection - overtemperature protection - ground fault protection optional: dimming using analog 4...20mA/0...10V interface
