Products
ZCON next gen
New generation of ZCON control unit for out-of-the-box UV Monitoring and Regulation - intuitive operation, modular design and maximum flexibility
Preconfigured UV Control: Ready to use – optimized for ZED ballasts and ZED UV sensors.
Modular Design: scalable IO boards and optional Wiper Control
Precise UV Monitoring and Regulation: Controls UV intensity based on calculated dose, tailored to customer-specific models and system designs.
Intuitive Operation via 12-inch touch display
Simplified Installation: CAT5 patch cables for system wiring + scalable IO boards significantly reduce wiring effort
ZED PPT – Perfect Performance Tool
UV-C lamp optimization
- lamp add-on for optimizing the UV-C output of amalgam lamps in combination with ZED ballasts
- UV-C lamp efficiency increase
- stable and predictable UV-C output in the entire temperature and dimming range
- no change in lamp/reactor geometry
- no additional wiring necessary
ZED SmartMeter
universal handheld unit for UV/C measurement
- UV-C intensity reference measurement with ÖNORM/DVGW compliant sensors
- VUV intensity measurement with 185nm sensors
- readjustment of digital ZED UV-C sensors
- data logging
- ModBus address setting
ZED Digital UVC Reference sensor
ÖNORM/DVGW compliant Digital UVC Reference sensor
UVC Reference Sensor D-SiCONORM-LP-REF to be used - for calibration checks of DVGW/ÖNORM conform facility sensors - as measurement device - as reference for in-field recalibration of digital ZED sensors > digital signal processing, signal conversion to absolute UVC intensity values in W/m² > measurement ranges: 0.01..250W/m²/0.1..500W/m² > internal operation hour counter The digital ZED reference sensor itself is the complete reference device -it is not bound to a certain radiometer device
D-SiC, D-SiC-I, D-SiC-U
digital UV-C sensors with digital or analog signal
Sensors for use in UV-C monitoring systems.
The digital signal processing allows the automatic selection of the optimum internal measurement range.
Low pressure types are adjusted for the complete range of 2...500W/m², medium pressure types: range 20...3000W/m².
Digital UV sensors with RS485 interface enable fail safe signal transmission using ModBus or ZCON protocol.
Digital Sensors with analog output incorporate signal converter to classical analog interfaces (4-20mA, 0-2V, 0-10V).
ZCONmini
master control unit for PHplus ballasts
- lamp operation control and monitoring
- operation hour counter
- UV monitoring with up to 4 digital UV sensors
- status indication by LCD, LED and relays
- remote switching
- ready to use and customized solutions
PHplus-R ballasts
for 4x 320W / 2x 260W / 1200W UV-C lamps
- optimized lamp operation - long lamp-ballast distances up to 30 m - single, dual, triple and quad lamp types - housing types and rack mountable types - adjustable operation parameters - dimmable (optional via 4-20mA, 0-10V, Ethernet) - providing local operation and digital remote control - lamp operation control via RS485 using ModBus or ZCON - status indication with LED, relay or via RS485 - enhanced protection: power range control, undervoltage/overtemperature protection
PHplus ballasts
controllable and adjustable electronic ballasts
- preheat start ballasts for optimal lamp operation
- long lamp-ballast distances - up to 30 m
- single, dual, triple and quad lamp types
- housing types and rack mountable types
- adjustable operation parameters
- dimmable
- providing local operation and digital remote control
- lamp operation control via RS485 using ModBus or ZCON
- status indication with LED, relay or via RS485
- enhanced protection: power range control, undervoltage protection, overtemperature protection
-
PH-S ballasts
electronic ballasts with enhanced operation
- preheat start ballasts for optimal lamp operation
- long lamp-ballast distances up to 30 m
- optimized to the specified lamp
- status indication with LED and relay
- overtemperature protection
New Line of Ballasts for Medium Pressure Lamps
The new line of ballasts for medium pressure lamps
Electronic ballasts for medium pressure lamps,
power ranges:
- 200...500W,
- 500...1500W
- 1500...2500W
> ignitor: internal for short cable lengths /
external for long cable lengths
> adjustable operation parameters
> lamp operation control via RS485
using ModBus or ZCON protocol
- power range control
- undervoltage protection
- overtemperature protection
- ground fault protection
optional:
dimming using analog 4...20mA/0...10V interface
ZED Modula
compact electronic unit for UV-C systems
- modular electronic unit for operating 1…3 UV-C lamps, total power 600W for easy integration into customized cabinets
- autonomous working base unit combines ballast, control- and monitoring features with a range of interfaces for integration in UV-C systems
- different front-ends for remote control

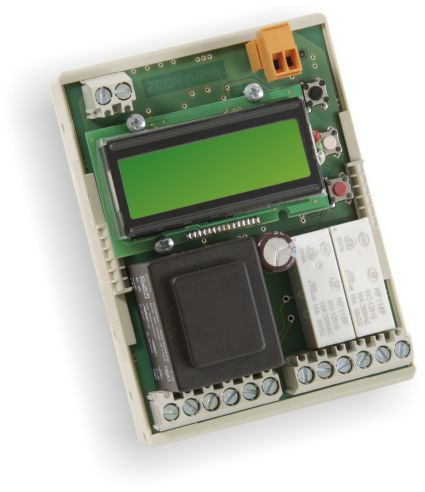

ZCONnano
dimming interface for PHplus ballasts
- dimming interface for PLC with 4-20mA/0-10V and switching I/O
- control of up to 12 PHplus ballasts
- lamp operation control and monitoring
- status indication by LCD and relay
- ready to use, selectable operation modes

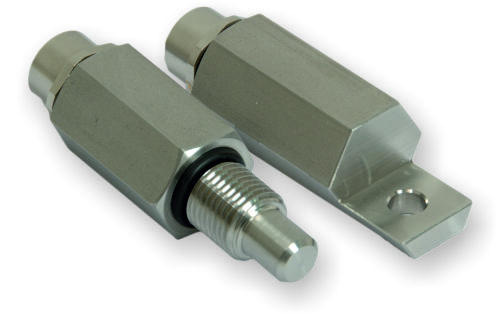

D-ST
digital temperature sensor for UV-C systems
Temperaturesensors for use in UV-C monitoring systems. Digital signal processing and RS485 interface enable fail safe signal transmission using ModBus or ZCON protocol, max. cable length: 30m. Multi sensor operation is possible by connecting sensors in parallal to the RS485 bus.
These temperature sensors can be used with digital ZED UV-C sensors on the same RS485 bus.
