We are Van Remmen UV Technology, the supplier of clean solutions for the use, reuse and return of water. We do this using reliable UV-C technology. In addition to our powerful disinfection systems, we offer advanced oxidation systems. Due to our unique design and use of low-pressure lamps, both solutions are the most energy-efficient equipment in their segment. Together we keep water clean and safe for people, the market and society.

Van Remmen UV Technology

Advanox Flow

A major challenge for water authorities

Pharmaceutical residues in our surface water are a growing environmental issue. Although these substances occur in low concentrations, they can have significant (harmful) effects on water life and even public health. New European regulations must therefore ensure that these micropollutants are removed quickly and effectively from wastewater and effluent. And that gives water authorities and interesting challenge: what is the most efficient, affordable and future-proof technology to achieve this?


A major test for Advanox

At Hoogheemraadschap De Stichtse Rijnlanden (HDSR), the Advanox system was tested at the Utrecht wastewater treatment plant (WWTP). Advanox treats wastewater with a combination of UV-C light and hydrogen peroxide, breaking down pharmaceutical residues into harmless substances. The set-up was quite simple: we connected an Advanox Flow reactor in a compact 20-foot shipping container to the existing sand filter of the WWTP, making it a fourth treatment step in the treatment process. The results were then monitored at various times according to the STOWA methodology.


Impressive results

And the results? They were impressive. Both on removal rate and cost and energy efficiency:


- Minimal energy consumption
Thanks to an innovative reactor design, energy consumption was minimised by 35%: to approximately 0.10kWh/m³.


- Maximum removal rate
At an energy consumption of 0.1 kWh/m³ and a hydrogen peroxide dosage of 20 ppm, a removal rate of 86% of pharmaceutical residues was achieved. This percentage is well above the 80% required by the new EU directive.


- Optimal cost efficiency
The total treatment costs for treating WWTP effluent in Utrecht range between €0.10 and €0.12 per cubic metre of water, including all operational expenses.


Advanox proves to be a sustainable choice

This demonstration test at the Utrecht WWTP underlined that Advanox is a future-proof technology for large-scale removal of pharmaceutical residues, with significant advantages over existing techniques. For example, the carbon footprint is minimal when using green energy. This is in contrast to activated carbon techniques, for example, which consume more raw materials and have a bigger environmental impact. Advanox poses no risk of creating toxic by-products such as bromate, or NDMA (Nitrosodimethylamine), as when using ozone. Moreover, thanks to the optimisation of the reactor, energy consumption (previously an obstacle to large-scale implementation) is more than halved.


From new kid to first choice

The success of this project illustrates the rapid development of Advanox for the removal of complex micropollutants, such as pharmaceutical residues. By combining effective pharmaceutical residue removal with low energy consumption, it offers water authorities and businesses an easily applicable tool to meet future environmental requirements. Advanox is already proving its worth at the decentralised wastewater treatment plant in Oosterwold and will be tested at more and more sites by water authorities and companies from all kinds of sectors in the coming years. Step by step, Advanox is thus growing from a new kid to a solid first choice for future-proof removal technologies.

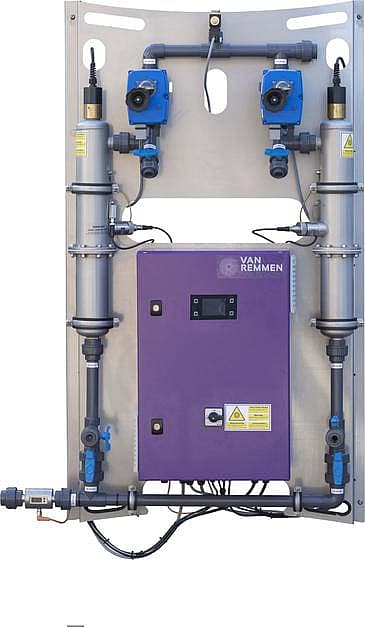

Dual System

The Dual System series features two reactors, each with 100% required capacity, ensuring continuous disinfection during maintenance or faults. The system switches between reactors every 24 hours to prevent stagnant water, providing safety for high-risk applications. Developed with advanced UV-C disinfection technology and intelligent monitoring, it guarantees effective disinfection and insights into system performance. The system can treat up to 48m³/h of process water and 36m³/h of drinking wat

The Dual System series ensures continuous disinfection during maintenance or faults, providing safe water for high-risk applications with advanced UV-

We make water clean and safe, using UV Technology
